Lincoln Ranger 305 LPG Engine Driven Welder (Kohler) One-Pak (K3430-2)
The Ranger 305 LPG is discontinued.Ā The suggested replacement is the Ranger 330MPX (K3459-1).Ā
Choose the Ranger 305 LPG for those environments where gasoline and diesel emissions are not acceptable. Includes a liquid propane gas supply hose with coupler for easy connection to the liquid draw outlet of an LP-gas cylinder. The 10,000-watt peak single-phase AC generator powers motor starting, tools and inverter welders for extended range and process capability.
- Top-of-the-line Kohler overhead valve (OHV) 25 HP Command LPG engine
- Digital weld meters monitor actual welding output
- Built-in āhotā start for easier starts and restrikes
Multi-Process Welding
Ā· Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas).
Ā· It's the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding.
Ā· CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.
Digital Weld Meters
Ā· Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
Superior Arc Performance
Ā· Lincoln Electric Chopper TechnologyĀ® provides easy starts, a smooth arc, low spatter and excellent bead appearance.
10,000 Watts Peak Single-Phase AC Generator Power
Ā· 10,000 watts peak for motor starting.
Ā· 9,000 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric InvertecĀ® inverter welder. Also can be used for lights, a grinder or other power tools.
Ā· AC generator voltage is constant at 120V or 240V at any weld dial setting.
Rugged Reliability
Ā· Welding and AC Generator Outputs rated at 104ĀŗF (40ĀŗC).
25 HP Kohler LPG Engine
Ā· LPG (Liquid Propane Gas) engine has plenty of horsepower.
Ā
- Multi-Process Welding
- Digital Weld Meters
- Superior Arc Performance
- 10,000 Watts Peak Single-Phase AC Generator Power
- 25 HP Kohler LPG Engine

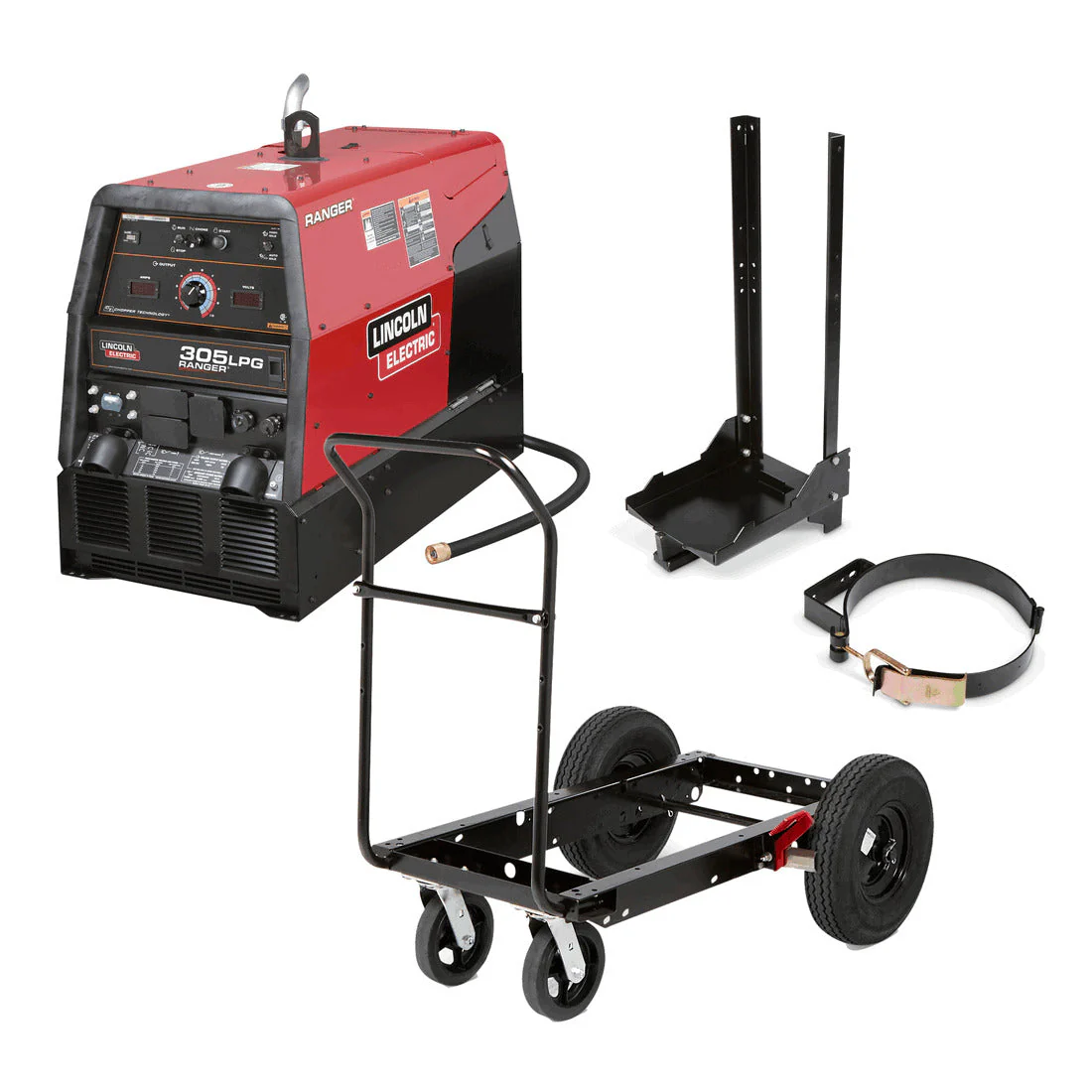

- Order a Lincoln Electric One-Pak and get everything you need to complete a welding package - all with one order number. (Package is not assembled.)
